DN40 American rubber flexible takeover "150bar"

上海淞江減震器集團有限公司官方網站為您介紹:【ANSI】DN40美標橡膠柔性接管“150bar”信息,淞江集團為眾多客戶提供美洲標準橡膠柔性接管產品,主要采用美標150bar法蘭標準,橡膠采用長度130mm標準,具有良好的減震和降噪效果。
The official website of Shanghai Meijiang Shock Absorber Group Co., Ltd. [ANSI] DN40 U.S. standard rubber flexible takeover "150bar" information, Meijiang Group provides many customers with American standard rubber flexible takeover products, mainly using U.S. standard 150 bar flange standard, rubber using 130mm length standard, with good shock absorption and noise reduction Effect.

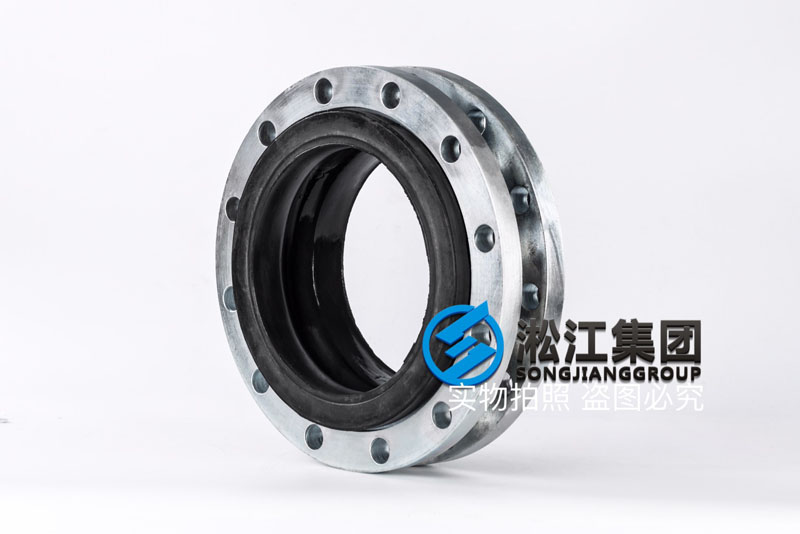

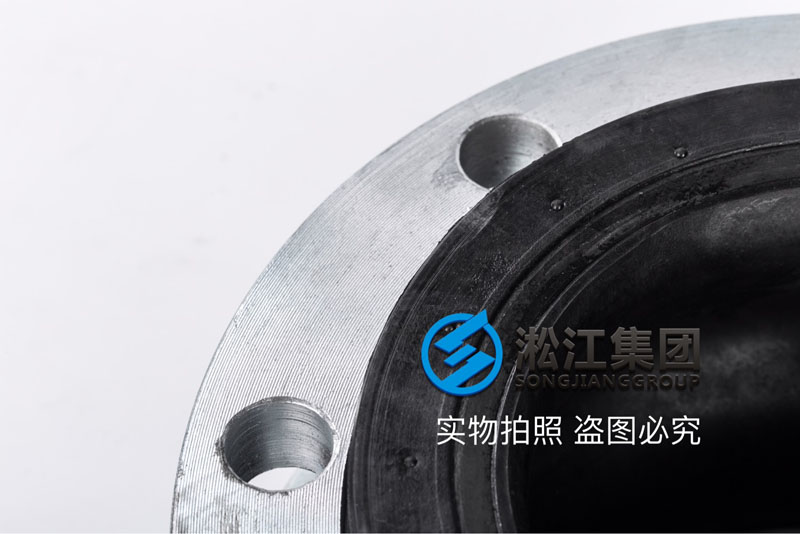

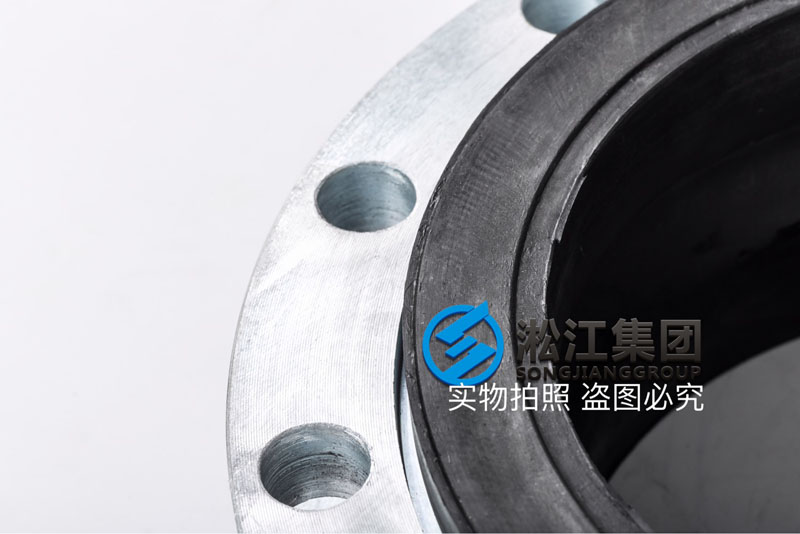

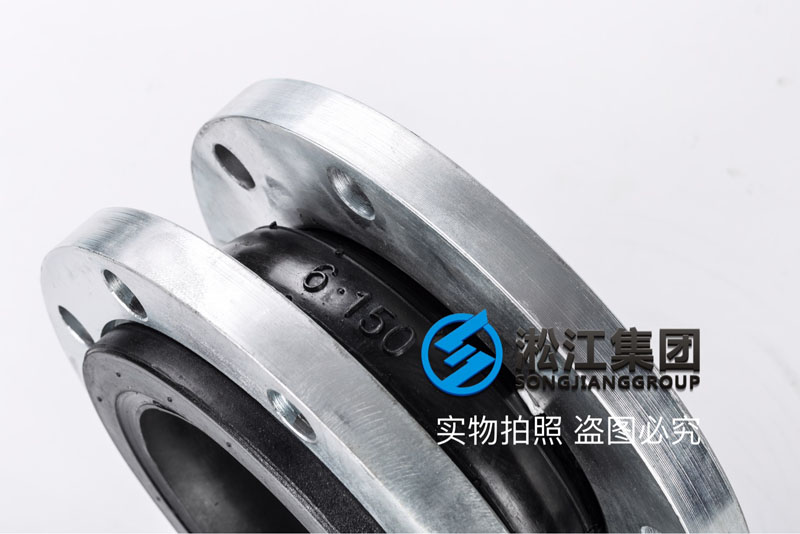

一、150bar美標橡膠柔性接管實物拍照:
【ANSI】DN40美標橡膠柔性接管“150bar”
【ANSI】DN40美標橡膠柔性接管“150bar”
【ANSI】DN40美標橡膠柔性接管“150bar”
【ANSI】DN40美標橡膠柔性接管“150bar”
二、150bar美標橡膠柔性接管基本信息:
名稱:美標柔性接管
型號:ANSI-150LB
口徑:DN40(1 1/2 寸)
質保:3年
優點:減震、降噪、補償管道、可偏轉、可位移。
介質:海水,120度以下弱酸堿。
生產廠家:上海淞江減震器集團有限公司
了解該產品更多型號參數表請點擊:【樣冊P41】美洲標準橡膠膨脹節
Essential information:
Name: American rubber expansion joint
Model: ANSI-150LB
Caliber: DN40 (1 1/2 inches)
Warranty: 3 years
Advantages: shock absorption, noise reduction, compensation for pipeline, deflection and displacement.
Medium: sea water, weak acid and base below 120 degrees.
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
橡膠性能參數:
安裝長度:130mm(150mm)
軸向拉伸:6mm
軸向壓縮:8mm
橫向位移:10mm
偏轉角度:16°

橡膠:三元乙丙橡膠(淞江集團所有三元乙丙橡膠全部采用三井4045,含量在50%左右,有材質證明,有含量檢測報告,也有國家型式試驗中心的產品檢測報告和性能檢測報告等證書。)

Rubber performance parameters:
Installation length: 130mm (150mm)
Axial tension: 6mm
Axial compression: 8mm
Lateral displacement: 10mm
Deflection angle: 16 degrees.
Rubber: Ethylene-propylene-diene rubber (all the Ethylene-propylene-diene rubber of Songjiang Group adopts Mitsui 4045, the content is about 50%, there are material proof, there are content testing reports, there are also national type testing center product testing reports and performance testing reports and other certificates.)
法蘭參數:
標準:ANSI-150LB
法蘭外徑:130mm
螺栓孔中心距:98.5mm
螺栓孔徑:16mm
螺栓孔數:4
壓力:150LB(PN20)
法蘭:碳鋼(Q235)
Flange parameters:
Standard: ANSI-150LB
Flange diameter: 130mm
Center distance of bolt hole: 98.5mm
Bolt diameter: 16mm
Bolt hole number: 4
Pressure: 150LB (PN20)
Flange: carbon steel (Q235)

三、150bar美標橡膠柔性接管發貨現場:

【ANSI】DN40美標橡膠柔性接管“150bar”

四、150bar美標橡膠柔性接管工廠介紹:

【ANSI】DN40美標橡膠柔性接管“150bar”
【ANSI】DN40美標橡膠柔性接管“150bar”
【ANSI】DN40美標橡膠柔性接管“150bar”
【ANSI】DN40美標橡膠柔性接管“150bar”

相關鏈接:橡膠接頭工程案例
Related links



]]>
http://www.ktytgk.com.cn/1763.html/feed 0
【ANSI】DN50美標橡膠軟接頭“化工部標準” http://www.ktytgk.com.cn/1762.html http://www.ktytgk.com.cn/1762.html#respond Sat, 06 Oct 2018 04:46:13 +0000 【ANSI】DN50美標橡膠軟接頭“與化工部標準一致”
DN50 American rubber soft joint "is consistent with the Ministry of chemical industry standards".

上海淞江減震器集團有限公司官方網站為您介紹:【ANSI】DN50美標橡膠軟接頭“與化工部標準一致”信息,淞江集團為眾多客戶提供美洲標準橡膠軟接頭產品,主要采用美標150LB法蘭標準,橡膠采用長度130mm標準,具有良好的減震和降噪效果。
The official website of Shanghai Meijiang Shock Absorber Group Co., Ltd. [ANSI] DN50 U.S. Standard Rubber Soft Joint "in accordance with the Ministry of Chemical Industry Standard" information, Meijiang Group provides many customers with American Standard Rubber Soft Joint Products, mainly using the U.S. Standard 150LB flange standard, rubber using the length of 130mm standard, with good damping. The effect of earthquake and noise reduction.

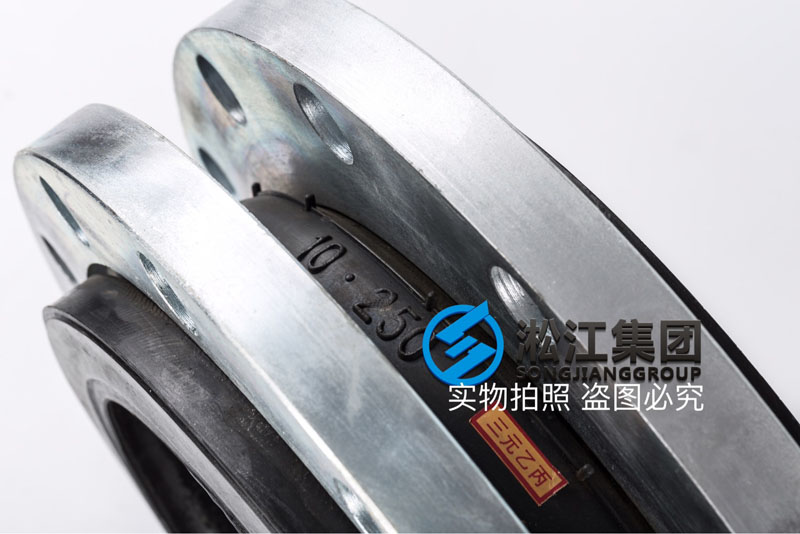

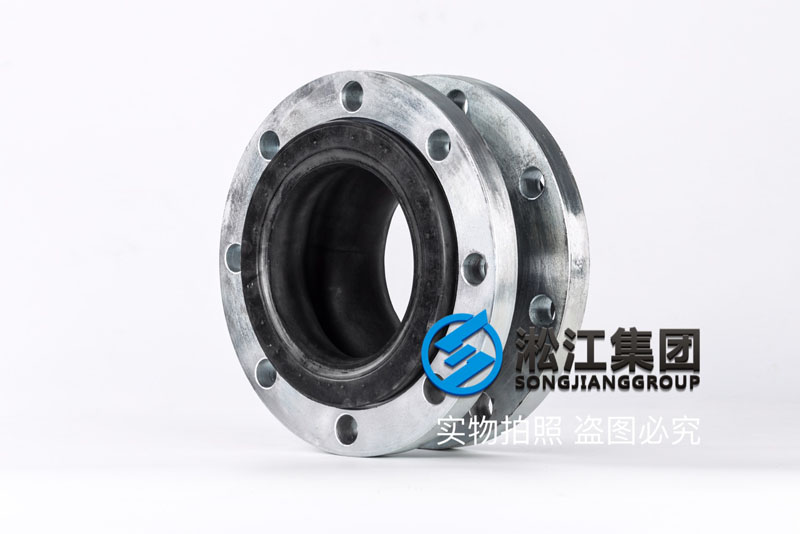

一、化工部標準橡膠軟接頭實物拍照:
【ANSI】DN50美標橡膠軟接頭“化工部標準”
【ANSI】DN50美標橡膠軟接頭“化工部標準”
【ANSI】DN50美標橡膠軟接頭“化工部標準”
【ANSI】DN50美標橡膠軟接頭“化工部標準”
【ANSI】DN50美標橡膠軟接頭“化工部標準”
二、化工部標準橡膠軟接頭基本信息:
名稱:美標橡膠軟接頭
型號:ANSI-150LB
口徑:DN50(2 寸)
質保:3年
優點:減震、降噪、補償管道、可偏轉、可位移。
介質:海水,120度以下弱酸堿。
生產廠家:上海淞江減震器集團有限公司
了解該產品更多型號參數表請點擊:【樣冊P41】美洲標準橡膠膨脹節
Essential information:
Name: American rubber expansion joint
Model: ANSI-150LB
Caliber: DN50 (2 inches)
Warranty: 3 years
Advantages: shock absorption, noise reduction, compensation for pipeline, deflection and displacement.
Medium: sea water, weak acid and base below 120 degrees.
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
橡膠性能參數:
安裝長度:130mm(150mm)
軸向拉伸:6mm
軸向壓縮:10mm
橫向位移:12mm
偏轉角度:16°
橡膠:三元乙丙橡膠(淞江集團所有三元乙丙橡膠全部采用三井4045,含量在50%左右,有材質證明,有含量檢測報告,也有國家型式試驗中心的產品檢測報告和性能檢測報告等證書。)

Rubber performance parameters:
Installation length: 130mm (150mm)
Axial tension: 6mm
Axial compression: 10mm
Lateral displacement: 12mm
Deflection angle: 16 degrees.
Rubber: Ethylene-propylene-diene rubber (all the Ethylene-propylene-diene rubber of Songjiang Group adopts Mitsui 4045, the content is about 50%, there are material proof, there are content testing reports, there are also national type testing center product testing reports and performance testing reports and other certificates.)
法蘭參數:
標準:ANSI-150LB
法蘭外徑:150mm
螺栓孔中心距:120.5mm
螺栓孔徑:18mm
螺栓孔數:4
壓力:150LB(PN20)
法蘭:碳鋼(Q235)
Flange parameters:
Standard: ANSI-150LB
Flange diameter: 150mm
Center distance of bolt hole: 120.5mm
Bolt diameter: 18mm
Bolt hole number: 4
Pressure: 150LB (PN20)
Flange: carbon steel (Q235)

三、化工部標準橡膠軟接頭發貨現場:

【ANSI】DN50美標橡膠軟接頭“化工部標準”

四、化工部標準橡膠軟接頭工廠介紹:

【ANSI】DN50美標橡膠軟接頭“化工部標準”
【ANSI】DN50美標橡膠軟接頭“化工部標準”
【ANSI】DN50美標橡膠軟接頭“化工部標準”
【ANSI】DN50美標橡膠軟接頭“化工部標準”

相關鏈接:橡膠接頭工程案例
Related links



]]>
http://www.ktytgk.com.cn/1762.html/feed 0
【ANSI】DN65美標橡膠避震喉“美國標準” http://www.ktytgk.com.cn/1761.html http://www.ktytgk.com.cn/1761.html#respond Sat, 06 Oct 2018 04:39:10 +0000 【ANSI】DN65美標橡膠避震喉“美國標準”
DN65 American rubber shock absorber "American Standard"

上海淞江減震器集團有限公司官方網站為您介紹:【ANSI】DN65美標橡膠避震喉“美國標準”信息,淞江集團為眾多客戶提供美洲標準橡膠接頭產品,主要采用美標150LB法蘭標準,橡膠采用長度130mm標準,具有良好的減震和降噪效果。
The official website of Shanghai Meijiang Shock Absorber Group Co., Ltd. [ANSI] DN65 U.S. Standard Rubber Shock Absorber Throat "U.S. Standard" information, Meijiang Group provides many customers with American Standard Rubber Joint Products, mainly using U.S. Standard 150LB flange standard, rubber using 130mm standard length, with good shock absorption and noise reduction effect. Fruit.

一、美國標準橡膠避震喉實物拍照:
【ANSI】DN65美標橡膠避震喉“美國標準”
【ANSI】DN65美標橡膠避震喉“美國標準”
【ANSI】DN65美標橡膠避震喉“美國標準”
【ANSI】DN65美標橡膠避震喉“美國標準”
【ANSI】DN65美標橡膠避震喉“美國標準”
二、美國標準橡膠避震喉基本信息:
名稱:美標橡膠避震喉
型號:ANSI-150LB
口徑:DN65(2 1/2寸)
質保:3年
優點:減震、降噪、補償管道、可偏轉、可位移。
介質:海水,120度以下弱酸堿。
生產廠家:上海淞江減震器集團有限公司
了解該產品更多型號參數表請點擊:【樣冊P41】美洲標準橡膠膨脹節
Essential information:
Name: American rubber expansion joint
Model: ANSI-150LB
Caliber: DN65 (2 1/2 inches)
Warranty: 3 years
Advantages: shock absorption, noise reduction, compensation for pipeline, deflection and displacement.
Medium: sea water, weak acid and base below 120 degrees.
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
橡膠性能參數:
安裝長度:130mm(150mm)
軸向拉伸:6mm
軸向壓縮:10mm
橫向位移:12mm
偏轉角度:15°
橡膠:三元乙丙橡膠(淞江集團所有三元乙丙橡膠全部采用三井4045,含量在50%左右,有材質證明,有含量檢測報告,也有國家型式試驗中心的產品檢測報告和性能檢測報告等證書。)

Rubber performance parameters:
Installation length: 130mm (150mm)
Axial tension: 6mm
Axial compression: 10mm
Lateral displacement: 12mm
Deflection angle: 15 degrees.
Rubber: Ethylene-propylene-diene rubber (all the Ethylene-propylene-diene rubber of Songjiang Group adopts Mitsui 4045, the content is about 50%, there are material proof, there are content testing reports, there are also national type testing center product testing reports and performance testing reports and other certificates.)
法蘭參數:
標準:ANSI-150LB
法蘭外徑:180mm
螺栓孔中心距:139.5mm
螺栓孔徑:18mm
螺栓孔數:4
壓力:150LB(PN20)
法蘭:碳鋼(Q235)
Flange parameters:
Standard: ANSI-150LB
Flange diameter: 180mm
Center distance of bolt hole: 139.5mm
Bolt diameter: 18mm
Bolt hole number: 4
Pressure: 150LB (PN20)
Flange: carbon steel (Q235)

三、美國標準橡膠避震喉發貨現場:

【ANSI】DN65美標橡膠避震喉“美國標準”

四、美國標準橡膠避震喉工廠介紹:

【ANSI】DN65美標橡膠避震喉“美國標準”
【ANSI】DN65美標橡膠避震喉“美國標準”
【ANSI】DN65美標橡膠避震喉“美國標準”
【ANSI】DN65美標橡膠避震喉“美國標準”

相關鏈接:橡膠接頭工程案例
Related links



]]>
http://www.ktytgk.com.cn/1761.html/feed 0
【ANSI】DN80美標橡膠接頭“美洲標準” http://www.ktytgk.com.cn/1760.html http://www.ktytgk.com.cn/1760.html#respond Sat, 06 Oct 2018 04:34:21 +0000 【ANSI】DN80美標橡膠接頭“美洲標準”
DN80 American standard rubber joint "American Standard"

上海淞江減震器集團有限公司官方網站為您介紹:【ANSI】DN80美標橡膠接頭“美洲標準”信息,淞江集團為眾多客戶提供美洲標準橡膠接頭產品,主要采用美標150LB法蘭標準,橡膠采用長度130mm標準,具有良好的減震和降噪效果。
The official website of Shanghai Meijiang Shock Absorber Group Co., Ltd. [ANSI] DN80 American Standard Rubber Joint "American Standard" information, Meijiang Group provides many customers with American Standard Rubber Joint Products, mainly using American Standard 150LB flange standard, rubber using 130mm length standard, with good shock absorption and noise reduction effect.

一、美洲標準橡膠接頭實物拍照:
【ANSI】DN80美標橡膠接頭“美洲標準”
【ANSI】DN80美標橡膠接頭“美洲標準”
【ANSI】DN80美標橡膠接頭“美洲標準”
【ANSI】DN80美標橡膠接頭“美洲標準”
【ANSI】DN80美標橡膠接頭“美洲標準”
二、美洲標準橡膠接頭介紹:
基本信息:
名稱:美標橡膠接頭
型號:ANSI-150LB
口徑:DN80(3寸)
質保:3年
優點:減震、降噪、補償管道、可偏轉、可位移。
介質:海水,120度以下弱酸堿。
生產廠家:上海淞江減震器集團有限公司
了解該產品更多型號參數表請點擊:【樣冊P41】美洲標準橡膠膨脹節
Essential information:
Name: American rubber expansion joint
Model: ANSI-150LB
Caliber: DN80 (3 inches)
Warranty: 3 years
Advantages: shock absorption, noise reduction, compensation for pipeline, deflection and displacement.
Medium: sea water, weak acid and base below 120 degrees.
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
橡膠性能參數:
安裝長度:130mm(150mm)
軸向拉伸:6mm
軸向壓縮:10mm
橫向位移:12mm
偏轉角度:13°
橡膠:三元乙丙橡膠(淞江集團所有三元乙丙橡膠全部采用三井4045,含量在50%左右,有材質證明,有含量檢測報告,也有國家型式試驗中心的產品檢測報告和性能檢測報告等證書。)

Rubber performance parameters:
Installation length: 130mm (150mm)
Axial tension: 6mm
Axial compression: 10mm
Lateral displacement: 12mm
Deflection angle: 13 degrees.
Rubber: Ethylene-propylene-diene rubber (all the Ethylene-propylene-diene rubber of Songjiang Group adopts Mitsui 4045, the content is about 50%, there are material proof, there are content testing reports, there are also national type testing center product testing reports and performance testing reports and other certificates.)
法蘭參數:
標準:ANSI-150LB
法蘭外徑:190mm
螺栓孔中心距:152.5mm
螺栓孔徑:20mm
螺栓孔數:4
壓力:150LB(PN20)
法蘭:碳鋼(Q235)
Flange parameters:
Standard: ANSI-150LB
Flange diameter: 190mm
Center distance of bolt hole: 152.5mm
Bolt diameter: 20mm
Bolt hole number: 4
Pressure: 150LB (PN20)
Flange: carbon steel (Q235)

三、美洲標準橡膠接頭發貨現場:

【ANSI】DN80美標橡膠接頭“美洲標準”

四、美洲標準橡膠接頭工廠介紹:

【ANSI】DN80美標橡膠接頭“美洲標準”
【ANSI】DN80美標橡膠接頭“美洲標準”
【ANSI】DN80美標橡膠接頭“美洲標準”
【ANSI】DN80美標橡膠接頭“美洲標準”

相關鏈接:橡膠接頭工程案例
Related links



]]>
http://www.ktytgk.com.cn/1760.html/feed 0
【ANSI】DN100美標橡膠管接頭“實體工廠” http://www.ktytgk.com.cn/1759.html http://www.ktytgk.com.cn/1759.html#respond Thu, 04 Oct 2018 01:57:59 +0000 【ANSI】DN100美標橡膠管接頭“實體工廠”
DN100 American standard rubber pipe joint "solid factory"

上海淞江減震器集團有限公司官方網站為您介紹:【ANSI】DN100美標橡膠管接頭“實體工廠”信息,淞江集團為眾多客戶提供美標型橡膠管接頭產品,主要采用美標150LB法蘭標準,橡膠采用長度130mm標準,具有良好的減震和降噪效果。
The official website of Shanghai Meijiang Shock Absorber Group Co., Ltd. [ANSI] DN100 U.S. Standard Rubber Tube Joints "Entity Factory" information. Meijiang Group provides many customers with U.S. Standard Rubber Tube Joints, mainly using U.S. Standard 150LB flange standard, rubber using 130mm standard length, with good shock absorption and noise reduction effect. Fruit.

一、ANSI美標橡膠管接頭實物拍照:
【ANSI】DN100美標橡膠管接頭“實體工廠”
【ANSI】DN100美標橡膠管接頭“實體工廠”
【ANSI】DN100美標橡膠管接頭“實體工廠”
【ANSI】DN100美標橡膠管接頭“實體工廠”
【ANSI】DN100美標橡膠管接頭“實體工廠”

二、ANSI美標橡膠管接頭介紹:

名稱:美標橡膠管接頭
型號:ANSI-150LB
口徑:DN100(4寸)
質保:3年
優點:減震、降噪、補償管道、可偏轉、可位移。
介質:海水,120度以下弱酸堿。
生產廠家:上海淞江減震器集團有限公司
了解該產品更多型號參數表請點擊:【樣冊P41】美洲標準橡膠膨脹節
Essential information:
Name: American rubber expansion joint
Model: ANSI-150LB
Caliber: DN100 (4 inches)
Warranty: 3 years
Advantages: shock absorption, noise reduction, compensation for pipeline, deflection and displacement.
Medium: sea water, weak acid and base below 120 degrees.
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
橡膠性能參數:
安裝長度:130mm(150mm)
軸向拉伸:6mm
軸向壓縮:10mm
橫向位移:12mm
偏轉角度:10°
橡膠:三元乙丙橡膠(淞江集團所有三元乙丙橡膠全部采用三井4045,含量在50%左右,有材質證明,有含量檢測報告,也有國家型式試驗中心的產品檢測報告和性能檢測報告等證書。)

Rubber performance parameters:
Installation length: 130mm (150mm)
Axial tension: 6mm
Axial compression: 10mm
Lateral displacement: 12mm
Deflection angle: 10 degrees.
Rubber: Ethylene-propylene-diene rubber (all the Ethylene-propylene-diene rubber of Songjiang Group adopts Mitsui 4045, the content is about 50%, there are material proof, there are content testing reports, there are also national type testing center product testing reports and performance testing reports and other certificates.)
法蘭參數:
標準:ANSI-150LB
法蘭外徑:230mm
螺栓孔中心距:190.5mm
螺栓孔徑:20mm
螺栓孔數:8
壓力:150LB(PN20)
法蘭:碳鋼(Q235)
Flange parameters:
Standard: ANSI-150LB
Flange diameter: 230mm
Center distance of bolt hole: 190.5mm
Bolt diameter: 20mm
Bolt hole number: 8
Pressure: 150LB (PN20)
Flange: carbon steel (Q235)

三、ANSI美標橡膠管接頭發貨現場:

【ANSI】DN100美標橡膠管接頭“實體工廠”

四、ANSI美標橡膠管接頭工廠介紹:

【ANSI】DN100美標橡膠管接頭“實體工廠”
【ANSI】DN100美標橡膠管接頭“實體工廠”
【ANSI】DN100美標橡膠管接頭“實體工廠”
【ANSI】DN100美標橡膠管接頭“實體工廠”

相關鏈接:橡膠接頭工程案例
Related links



]]>
http://www.ktytgk.com.cn/1759.html/feed 0
【ANSI】DN125美標橡膠伸縮節“長度130mm” http://www.ktytgk.com.cn/1758.html http://www.ktytgk.com.cn/1758.html#respond Thu, 04 Oct 2018 01:56:57 +0000 【ANSI】DN125美標橡膠伸縮節“長度130mm”
DN125 American rubber expansion joint "length 130mm"

上海淞江減震器集團有限公司官方網站橡膠接頭欄目為您介紹:【ANSI】DN125美標橡膠伸縮節“長度130mm”信息,淞江集團是一家生產各種橡膠接頭產品的廠家,擁有自己工廠的一套生產工藝流程和管理體系,確保產品質量做到有記錄,有依據,有檔案。
Shanghai Meijiang Shock Absorber Group Co., Ltd. Official Website Rubber Joint Column for you to introduce: [ANSI] DN125 U.S. standard rubber expansion joint "length 130mm" information, Meijiang Group is a manufacturer of various rubber joint products, has its own factory production process and management system to ensure that product quality is achieved. Records, evidence and archives.

一、ANSI美標橡膠伸縮節實物拍照:
【ANSI】DN125美標橡膠伸縮節“長度130mm”
【ANSI】DN125美標橡膠伸縮節“長度130mm”
【ANSI】DN125美標橡膠伸縮節“長度130mm”
【ANSI】DN125美標橡膠伸縮節“長度130mm”
二、ANSI美標橡膠伸縮節介紹:
名稱:美標橡膠伸縮節
型號:ANSI-150LB
口徑:DN125(5寸)
了解該產品更多型號參數表請點擊:【樣冊P41】美洲標準橡膠膨脹節
質保:3年
優點:減震、降噪、補償管道、可偏轉、可位移。
介質:海水,120度以下弱酸堿。
生產廠家:上海淞江減震器集團有限公司

Essential information:
Name: American rubber expansion joint
Model: ANSI-150LB
Caliber: DN125 (5 inches)
Warranty: 3 years
Advantages: shock absorption, noise reduction, compensation for pipeline, deflection and displacement.
Medium: sea water, weak acid and base below 120 degrees.
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
橡膠性能參數:
安裝長度:130mm(150mm)
軸向拉伸:6mm
軸向壓縮:10mm
橫向位移:12mm
偏轉角度:8°
橡膠:三元乙丙橡膠(淞江集團所有三元乙丙橡膠全部采用三井4045,含量在50%左右,有材質證明,有含量檢測報告,也有國家型式試驗中心的產品檢測報告和性能檢測報告等證書。)

Rubber performance parameters:
Installation length: 130mm (150mm)
Axial tension: 6mm
Axial compression: 10mm
Lateral displacement: 12mm
Deflection angle: 8 degrees.
Rubber: Ethylene-propylene-diene rubber (all the Ethylene-propylene-diene rubber of Songjiang Group adopts Mitsui 4045, the content is about 50%, there are material proof, there are content testing reports, there are also national type testing center product testing reports and performance testing reports and other certificates.)
法蘭參數:
標準:ANSI-150LB
法蘭外徑:255mm
螺栓孔中心距:216mm
螺栓孔徑:22mm
螺栓孔數:8
壓力:150LB(PN20)
法蘭:碳鋼(Q235)
Flange parameters:
Standard: ANSI-150LB
Flange diameter: 255mm
Center distance of bolt hole: 216mm
Bolt diameter: 22mm
Bolt hole number: 8
Pressure: 150LB (PN20)
Flange: carbon steel (Q235)

三、ANSI美標橡膠伸縮節發貨現場:

【ANSI】DN125美標橡膠伸縮節“長度130mm”

四、ANSI美標橡膠伸縮節工廠介紹:

【ANSI】DN125美標橡膠伸縮節“長度130mm”
【ANSI】DN125美標橡膠伸縮節“長度130mm”
【ANSI】DN125美標橡膠伸縮節“長度130mm”
【ANSI】DN125美標橡膠伸縮節“長度130mm”

相關鏈接:橡膠接頭工程案例
Related links



]]>
http://www.ktytgk.com.cn/1758.html/feed 0
【ANSI】DN150美標橡膠防震接頭“美國標準” http://www.ktytgk.com.cn/1746.html http://www.ktytgk.com.cn/1746.html#respond Sun, 16 Sep 2018 23:38:24 +0000 【ANSI】DN150美標橡膠防震接頭“150Lb美國標準”
DN150 American standard rubber shock joint "150Lb American Standard"上海淞江減震器集團有限公司官方網站為您介紹:【ANSI】DN150美標橡膠防震接頭“150Lb美國標準”信息,淞江集團為眾多美洲客戶介紹美標150lb標準橡膠防震接頭產品,我廠擁有自己的自動化生產設備和疲勞檢測設備,歡迎實地參觀考察。
The official website of Shanghai Meijiang Shock Absorber Group Co., Ltd. [ANSI] DN150 U.S. Standard Rubber Shock-proof Joints "150Lb U.S. Standard" information, Meijiang Group provides U.S. Standard Rubber Shock-proof Joints for many American customers, our factory has its own automatic production equipment and fatigue testing equipment, welcome on-site Visiting.

一、150lb美標橡膠防震接頭實物拍照:
【ANSI】DN150美標橡膠防震接頭“美國標準”
【ANSI】DN150美標橡膠防震接頭“美國標準”
【ANSI】DN150美標橡膠防震接頭“美國標準”
【ANSI】DN150美標橡膠防震接頭“美國標準”

【ANSI】DN150美標橡膠防震接頭“美國標準”
二、150lb美標橡膠防震接頭介紹:

名稱:美標橡膠防震接頭

型號:ANSI-150LB
口徑:DN150(6寸)
橡膠:三元乙丙橡膠(淞江集團所有三元乙丙橡膠全部采用日本三井4045,含量在50%左右,有材質證明,有含量檢測報告,也有國家型式試驗中心的產品檢測報告和性能檢測報告等證書。)
法蘭:碳鋼冷鍍鋅
優點:減震、降噪、補償管道、可偏轉、可位移。
了解該產品更多型號參數表請點擊:【樣冊P41】美洲標準橡膠膨脹節
質保:3年
安裝長度:130mm(150mm)
軸向壓縮:10mm
軸向拉伸:6mm
橫向位移:12mm
偏轉角度:6°
標準:ANSI-150LB
法蘭外徑:280mm
螺栓孔中心距:241.5mm
螺栓孔徑:22mm
螺栓孔數:8
壓力:150LB(PN20)
法蘭:碳鋼(Q235)
介質:海水、弱酸堿
生產廠家:上海淞江減震器集團有限公司

Name: single ball American standard rubber expansion joint
Model: ANSI-150LB
Caliber: DN150 (6 inches)
Rubber: Ethylene-propylene-diene rubber (all Ethylene-propylene-diene rubber of Meijiang Group adopts Japan Mitsui 4045, the content is about 50%, there is material proof, there is content testing report, there are also national type testing center product testing report and performance testing report certificate).
Flange: carbon steel cold galvanized
Advantages: shock absorption, noise reduction, compensation for pipeline, deflection and displacement.
Warranty: 3 years
Installation length: 130mm (150mm)
Axial compression: 10mm
Axial tension: 6mm
Lateral displacement: 12mm
Deflection angle: 6 degrees.
Standard: ANSI-150LB
Flange diameter: 280mm
Center distance of bolt hole: 241.5mm
Bolt diameter: 22mm
Bolt hole number: 8
Pressure: 150LB (PN20)
Flange: carbon steel (Q235)
Medium: seawater,
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.

三、150lb美標橡膠防震接頭發貨現場:

【ANSI】DN150美標橡膠防震接頭“美國標準”

四、150lb美標橡膠防震接頭工廠介紹:

【ANSI】DN150美標橡膠防震接頭“美國標準”
【ANSI】DN150美標橡膠防震接頭“美國標準”
【ANSI】DN150美標橡膠防震接頭“美國標準”
【ANSI】DN150美標橡膠防震接頭“美國標準”

相關鏈接:橡膠接頭工程案例
Related links

【ANSI】DN150美標橡膠防震接頭“美國標準”



]]>
http://www.ktytgk.com.cn/1746.html/feed 0
【ANSI】DN250單球美標橡膠伸縮接頭“150LB” http://www.ktytgk.com.cn/1745.html http://www.ktytgk.com.cn/1745.html#respond Mon, 10 Sep 2018 13:08:43 +0000 【ANSI】DN250單球美標橡膠伸縮接頭“150LB”
ANSI DN250 single ball American standard rubber expansion joint "150LB"

上海淞江減震器集團有限公司官方網站為您介紹:【ANSI】DN250單球美標橡膠伸縮接頭“150LB”信息,淞江集團生產各種ANSI標準橡膠伸縮接頭產品,主要采用150LB法蘭標準,橡膠長度130mm,壓力達到PN20,橡膠采用EPDM材料。
Shanghai Meijiang Shock Absorber Group Co., Ltd.'s official website for you to introduce: [ANSI] DN250 single ball U.S. standard rubber expansion joint "150LB" information, Meijiang Group specializes in the production of various ANSI standard rubber expansion joint products, mainly using 150LB flange standard, rubber length 130mm, pressure up to PN20, rubber using EPDM materials.

一、ANSI美標橡膠伸縮接頭實物拍照:

【ANSI】DN250單球美標橡膠伸縮接頭“150LB”
【ANSI】DN250單球美標橡膠伸縮接頭“150LB”
【ANSI】DN250單球美標橡膠伸縮接頭“150LB”
【ANSI】DN250單球美標橡膠伸縮接頭“150LB”
【ANSI】DN250單球美標橡膠伸縮接頭“150LB”
二、ANSI美標橡膠伸縮接頭介紹:
名稱:ANSI美標橡膠伸縮接頭
型號:ANSI-150LB
口徑:DN250(10寸)
了解該產品更多型號參數表請點擊:【樣冊P41】美洲標準橡膠膨脹節
橡膠:三元乙丙橡膠(淞江集團所有三元乙丙橡膠全部采用日本三井4045,含量在50%左右,有材質證明,有含量檢測報告,也有國家型式試驗中心的產品檢測報告和性能檢測報告等證書。)
法蘭:碳鋼冷鍍鋅
優點:減震、降噪、補償管道、可偏轉、可位移。
質保:3年
安裝長度:130mm(150mm)
軸向壓縮:17mm
軸向拉伸:9mm
橫向位移:12mm
偏轉角度:5°
標準:ANSI-150LB
法蘭外徑:405mm
螺栓孔中心距:362mm
螺栓孔徑:26mm
螺栓孔數:12
壓力:150LB(PN20)
法蘭:碳鋼(Q235)
介質:海水、

生產廠家:上海淞江減震器集團有限公司

Name: single ball American standard rubber expansion joint
Model: ANSI-150LB
Caliber: DN250 (10 inches)
Rubber: Ethylene-propylene-diene rubber (all Ethylene-propylene-diene rubber of Meijiang Group adopts Japan Mitsui 4045, the content is about 50%, there is material proof, there is content testing report, there are also national type testing center product testing report and performance testing report certificate).
Flange: carbon steel cold galvanized
Advantages: shock absorption, noise reduction, compensation for pipeline, deflection and displacement.
Warranty: 3 years
Installation length: 130mm (150mm)
Axial compression: 17mm
Axial tension: 9mm
Lateral displacement: 12mm
Deflection angle: 5 degrees.
Standard: ANSI-150LB
Flange diameter: 405mm
Center distance of bolt hole: 362mm
Bolt diameter: 26mm
Bolt hole number: 12
Pressure: 150LB (PN20)
Flange: carbon steel (Q235)
Medium: seawater,

Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.

三、ANSI美標橡膠伸縮接頭發貨現場:

【ANSI】DN250單球美標橡膠伸縮接頭“150LB”

四、ANSI美標橡膠伸縮接頭工廠介紹:

【ANSI】DN250單球美標橡膠伸縮接頭“150LB”
【ANSI】DN250單球美標橡膠伸縮接頭“150LB”
【ANSI】DN250單球美標橡膠伸縮接頭“150LB”
【ANSI】DN250單球美標橡膠伸縮接頭“150LB”

相關鏈接:橡膠接頭工程案例
Related links



【ANSI】DN250單球美標橡膠伸縮接頭“150LB”
]]>
http://www.ktytgk.com.cn/1745.html/feed 0
高清一级毛片一本到免费观看| 可以免费看毛片的网站| 日韩avdvd| 麻豆系列国产剧在线观看| 国产精品免费久久| 欧美夜夜骑 青草视频在线观看完整版 久久精品99无色码中文字幕 欧美日韩一区二区在线观看视频 欧美中文字幕在线视频 www.99精品 香蕉视频久久 | 毛片成人永久免费视频| 美国一区二区三区| 久久99爰这里有精品国产| 天天做人人爱夜夜爽2020| 国产一区二区精品在线观看| 国产伦久视频免费观看 视频| 日本久久久久久久 97久久精品一区二区三区 狠狠色噜噜狠狠狠狠97 日日干综合 五月天婷婷在线观看高清 九色福利视频 | 精品视频在线观看视频免费视频| 午夜在线影院| 色综合久久天天综合绕观看| 国产91精品一区| 四虎影视精品永久免费网站| 欧美夜夜骑 青草视频在线观看完整版 久久精品99无色码中文字幕 欧美日韩一区二区在线观看视频 欧美中文字幕在线视频 www.99精品 香蕉视频久久 | 你懂的在线观看视频| 欧美另类videosbestsex视频| a级精品九九九大片免费看| 欧美a级片视频| 999久久久免费精品国产牛牛| 国产麻豆精品| 青青青草影院| 青青久热| 久久精品免视看国产成人2021| 国产成人精品综合久久久| 国产a免费观看| 国产91素人搭讪系列天堂| 成人高清视频在线观看| 尤物视频网站在线观看| 一a一级片| 亚洲精品影院| 国产美女在线一区二区三区| 欧美1区| 日韩欧美一及在线播放| 国产视频一区二区在线播放| 国产成a人片在线观看视频| 你懂的日韩| 国产a免费观看| 国产伦精品一区二区三区在线观看| 欧美18性精品| 欧美1卡一卡二卡三新区| 精品国产一区二区三区久久久蜜臀| 美女免费毛片| 欧美大片一区| 国产成人精品一区二区视频| 九九久久99综合一区二区| 日本在线www| 国产伦久视频免费观看视频| 日韩在线观看免费| 四虎精品在线观看| 欧美国产日韩在线| 国产综合成人观看在线| 久久99欧美| 精品视频在线观看一区二区| 香蕉视频一级| 国产一区精品| 国产福利免费观看| 精品视频免费在线| 成人免费观看视频| 国产不卡精品一区二区三区| 日韩一级精品视频在线观看| 免费一级片网站| 精品国产一区二区三区久久久狼| 九九久久99综合一区二区| 免费的黄视频| 欧美夜夜骑 青草视频在线观看完整版 久久精品99无色码中文字幕 欧美日韩一区二区在线观看视频 欧美中文字幕在线视频 www.99精品 香蕉视频久久 | 久久精品店| 九九精品久久| 国产91视频网| 国产高清视频免费观看| 97视频免费在线| 999精品视频在线| 91麻豆tv| 色综合久久久久综合体桃花网| 精品国产香蕉伊思人在线又爽又黄| 99热精品在线| 日本特黄特色aaa大片免费| 精品国产一区二区三区久| 久久福利影视| 一级女性全黄生活片免费| 韩国毛片基地| 亚欧视频在线| 亚久久伊人精品青青草原2020| 欧美激情一区二区三区在线| 一级女性全黄久久生活片| 欧美a级片视频| 精品国产亚洲一区二区三区| 久久国产精品自线拍免费| 免费毛片播放| 欧美激情一区二区三区视频高清| 999久久66久6只有精品| 毛片成人永久免费视频| 精品视频在线观看一区二区| 中文字幕一区二区三区精彩视频 | 国产麻豆精品hdvideoss| 免费一级片网站| 欧美日本韩国| 久久国产精品永久免费网站| 精品在线观看国产| 国产一区二区精品| 精品视频免费看| 二级特黄绝大片免费视频大片| 国产亚洲精品成人a在线| 亚洲 男人 天堂| 午夜在线影院| 欧美激情一区二区三区视频| 午夜在线影院| 国产一区二区精品久久91| 午夜在线观看视频免费 成人| 国产一级生活片| 国产国语对白一级毛片| 日韩字幕在线| 91麻豆tv| 午夜在线影院| 青草国产在线| 二级片在线观看| 毛片电影网| 国产a免费观看| 午夜激情视频在线观看| 欧美爱色| 九九精品在线播放| 青青久热| 精品国产亚一区二区三区| 日韩av东京社区男人的天堂| 夜夜操天天爽| 97视频免费在线| 青青青草影院 | 国产网站免费在线观看| 九九久久99| 国产美女在线观看| 日韩免费在线观看视频| 91麻豆精品国产自产在线观看一区| 国产高清在线精品一区a| 色综合久久天天综线观看| 韩国三级香港三级日本三级la| 麻豆系列国产剧在线观看| 韩国毛片基地| 日韩中文字幕在线亚洲一区| 成人免费观看视频| 精品久久久久久影院免费| 久久精品免视看国产明星| 国产a免费观看| 欧美一级视频免费| 欧美日本二区| 国产视频一区在线| 国产精品自拍在线观看| 国产不卡精品一区二区三区| 日韩av成人| 99热精品一区| 国产不卡福利| 国产91精品系列在线观看| 国产亚洲精品成人a在线| 精品国产亚洲人成在线| 四虎久久精品国产| 国产精品1024永久免费视频 | 天天色成人| a级毛片免费观看网站| 国产一级强片在线观看| 久久99青青久久99久久| 精品国产一区二区三区久| 国产精品自拍在线观看| 国产一区国产二区国产三区| 午夜家庭影院| 免费毛片播放| 精品视频在线观看一区二区| 亚欧视频在线| 国产一区国产二区国产三区| 一级毛片视频在线观看| 人人干人人草| 国产视频在线免费观看| 日本在线不卡免费视频一区| 青青久久精品| 国产伦久视频免费观看 视频| 青青青草影院| 免费国产在线观看| 日本免费看视频| 九九热精品免费观看| 亚洲精品中文字幕久久久久久| 欧美a级片视频| 天天做日日干| 精品视频免费在线| 久久国产精品自线拍免费| 精品视频在线看| 国产成人精品一区二区视频| 成人高清护士在线播放| 台湾毛片| 日韩在线观看视频黄| 国产精品自拍在线| a级毛片免费观看网站| 日韩专区第一页| 一级女性全黄生活片免费| 免费毛片播放| 国产不卡在线观看| 中文字幕97| 日日日夜夜操| 久久国产一久久高清|
